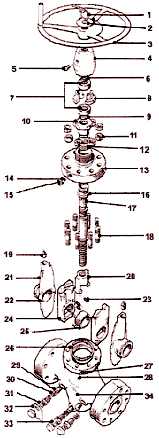

McEvoy Model “C” Gate Valve 3000, 5000 & 10,000 PSI

1. Snap Pin
2. Plate, No. of Turns
3. Handwheel
4. Bonnet Cap
5. Grease Nipple
6. Grease Seal
7. Stem Bearing
8. Bearing Keeper
9. Seal “O” Ring
10. Packing Adapter
11. Nut
12. Packing
13. Bonnet
14. Bleeder Ball
15. Bleeder Screw
16. Back Seat Bushing
17. Stem
18. Stud
19. Piston
20. Lift Nut
21. Seat
22. Guide Pin
23. Gate Spring
24. Gate
25. Trash Ring
26. Bonnet Gasket
27. Name Plate for Midco Valve
28. Name Plate Screw
29. Check Valve
30. Set Screw
31. Lube Fitting Sealing Compound
32. Instruction Plate ( Lubricant instruction)
33. Lube Fitting Body Filler
34. Body Dwg. ( EDCN No. 411)

		2 1/16	2 9/16	3 1/8	4 1/16’	5 1/8”	6 1/8”	6 3/8	7 1/16”
1	Snap pin	559084	559084	559084	559084	525303	559084	559084	559084
2	Plate No turns	516165	516165	542548	549277	516166	549277	549277	549277
3	Hand wheel	521529	521529	521529	550706	550706	550706	550706	550706
4	Bonnet cap	521524	521524	524261	515779		529181	529181	529181
5	Grease nipple	511526	511526	511526	511526	511526	511526	511526	511526
6	Grease seal	521535	521535	521535	520711	525133	520711	520711	520711
7	Stem bearing	521520	521520	521520	510752	510752	510752	510752	510752
8	Bering keeper	521532	521532	521532	547506		547506	547506	521532
9	Seal O ring	513338	513338	520707	513353		513353	513353	513353
10	Packing adapter	524262	524262	524262	549270		556523	556523	556523
10a	Packing adapter top for 10K			515458
10b	Washer packing adapter for 10k			549624			516679	516679	516679
11	Nut	522536	513266	518185	522527		518183	518183	518183
12	Packing	521905	521905	265369-01	521905	516892	521905	521905	521905
13	Bonnet	529001	549084	528238	589068	567230	556843		556843
14	Bleeder ball	510515	510515	510515	510515	510515	510515		510515
15	Bleeder screw	517722	517722	517722	517722	517722	517722	517722	517722
16	Back seat bushing	543134	543134	528048-01	543134		543134	543134	543134
17	Stem	559049	559429	259886-08	559566		556522	556866	556522
18	Stud	523033		542176	522590	556540	556845		556845
19	Piston	523118	523118	598929	598929	516164	516164		556521
20	Lift nut	523856	523856	561676	547485		528681		528681
21	Seat	See Chart	See Chart	See Chart	See Chart	See Chart	See Chart	See Chart	See Chart
22	Guide pin	543037	543037	543037	5423037	543037	543037
23	Gate spring	516865	516865	516865	516865	516865	516865		516865
24	Gate	See Chart	See Chart	See Chart	See Chart	See Chart	See Chart	See Chart	See Chart
24a	Gate for 10,000 PSI	See Chart	See Chart	See Chart	See Chart	See Chart	See Chart	See Chart	See Chart
25	Trash ring	544950	544949	544948	545939	567184	556516		566431
26	Bonnet gasket	523492	524291	529828	545756	554516	557448	532603	556516
27	Name plate	516169	516169	516169	516169	516169	516169	516169	516169
28	Name plate screw	514224	514224	514224	514224	514224	514224	514224	514224
29	Check valve	526743	526743	526743	526743	526743	526743	526743	526743
30	Set screw	526742	526742	526742	526742	526742	526742	526742	526742
31	Lube Fitting Compound	523357	523357	523357	523357	523357	523357	523357	523357
32	Instruction plate	516166	516166	516166	516166	516166	516166	516166	516166
33	Lube fitting body filler	523328	526628	526628	526628	526628	526628	526628	526628
34	Body			528233		533650	533061		533061

Seats assemblies “ Standard Acting” API.6A. 16^th Edition

Size		Alloy steel	Alloy hard faced T. Carbide	S.S 410 Nace	S.S 410 Hard faced	Alloy Steel Hard faced Colmonoy
2 1/16” 23/5/10K	Slip Fit	258046-03	258046-04	258046-02	258046-05	258046-07
2 1/16” 2/3/5/10K	Press fit	265768-04	265768-05	265768-06	265768-07
2 9/16” 2/3/5/10K	Slip Fit	264267-02	264267-03	264267-04	264267-05
2 9/16” 2/3/5/10K	Press fit	264267-06	264267-07	264267-08	264267-09
3 1/8 -2/3/5K & 3 1/16” 10K	Slip fit / Short Hub	265313-01	265313-02	265313-03	265313-04
3 1/8-2/3/5K & 3 1/16” 10K	Press fit / Short Hub	265314-01	265314-02	265314-03	265314-04	265314-05
3 1/8-2/3/5K & 3 1/16” 10K	Slip fit / Long Hub	258055-08	258055-06	258055-07	258055-09	258055-
3 1/8-2/3/5K & 3 1/16” 10K	Press fit / Long Hub	259761-04	259761-03	259761-02	259761-06	259761-08
4 1/16” 2/3/5/10K	Press fit / Short Hub	265318-01	265318-02	265318-03	265318-04	265318-06
4 1/16” 2/3/5/10K	Slip fit / Long Hub	259154-05	259154-06	259154-04	259154-07
4 1/16” 2/3/5/10K	Press fit/ Long Hub	259288-04	259288-05	259288-03	259288-06
5 1/8” 2/3/5K	Press fit / Short Hub	265355-01	265355-02	265355-03	265355-04
5 1/8” 2/3/5K	Slip fit / Long Hub	264330-02	264330-03	264330-04	264330-05
5 1/8” 2/3/5K	Press fit/Long Hub	265356-01	265356-02	265356-03	265356-04
5 1/8” 2/3/5K New Design	Slip Fit	258262-03	258262-04	258262-02	258262-05
5 1/8”-10K	Press fit/Short Hub	265357-01	265357-02	265357-03	265357-04
5 1/8” 10K New Design	Slip Fit	265358-01	265358-02	265358-03	265358-04
6 1/8” 2/3/5,000	Press fit	259037-02	259037-03	259037-04	259037-05
6 3/8” 2/3/5/10,000	Slip Fit	259600-06	259600-07	259600-05	259600-08
6 3/8” 2/3/5/10,000	Press Fit	265359-01	265359-02	265359-03	265359-04
7 1/8”2/3/5K	Press Fit	259116-04	259116-02	259116-03	259116-05
9” 2/3/5K. 8.125” Non API Bore	Slip Fit	268962-02		268962-03

McEvoy Model “C” Gate Valve, Seats and Gates Trim Chart

Seats assemblies “Reverse Acting” API.6A. 16^th Edition

Size		Alloy steel	Alloy hard faced T. Carbide	S.S 410 Nace	S.S 410 Hard faced	Alloy Steel Hard faced Colmonoy
2 1/16” 23/5/10K	Slip Fit	258050-04	258050-05	258050-03	258050-06
2 1/16” 2/3/5/10K	Press fit	258050-08	258050-09	258050-10	258050-11
2 9/16” 2/3/5/10K	Slip Fit	264270-02	264270-03	264270-04	264270-05
2 9/16” 2/3/5/10K	Press fit	264270-06	264270-07	264270-08	264270-09
3 1/8 -2/3/5K & 3 1/16” 10K	Slip fit / Short Hub	265315-01	265315-02	265315-03	265315-04
3 1/8-2/3/5K & 3 1/16” 10K	Press fit / Short Hub	265316-01	265316-02	265316-03	265316-04
3 1/8-2/3/5K & 3 1/16” 10K	Slip fit / Long Hub	265166-02	265166-01	265166-03	265166-04
3 1/8-2/3/5K & 3 1/16” 10K	Press fit / Long Hub	259364-02	259364-03	259364-04	259364-05	259364-06
4 1/16” 2/3/5/10K	Press fit / Short Hub	265319-01	265319-02	265319-03	265319-04
4 1/16” 2/3/5/10K	Slip fit / Long Hub	259436-03	259436-04	259436-02	259436-05
4 1/16” 2/3/5/10K	Press fit/ Long Hub	259800-04	259800-05	259800-03	259800-06
5 1/8” 2/3/5K	Press fit / Short Hub	265360-01	265360-02	265360-03	265360-04
5 1/8” 2/3/5K	Slip fit / Long Hub	264254-02	264254-03	264354-04	264354-05
5 1/8” 2/3/5K	Press fit/Long Hub	265361-01	265361-02	265361-03	265361-04
5 1/8” 2/3/5K New Design	Slip Fit	258262-03	258262-04	258262-02	258262-05
5 1/8”-10K	Press fit/Short Hub	265362-01	265362-02	265362-03	265362-04
5 1/8” 10K New Design	Slip Fit	265362-01	265363-02	265363-03	265363-04
6 1/8” 2/3/5,000	Press fit	259100-02	259100-03	259100-04	259100-05
6 3/8” 2/3/5/10,000	Slip Fit	259598-04	259598-05	259598-03	259598-06
6 3/8” 2/3/5/10,000	Press Fit	265364-01	265364-02	265364-03	265364-04
7 1/8”2/3/5K	Press Fit
9” 2/3/5K. 8.125” Non API Bore	Slip Fit	268962-01		269489-01

Standard and Reverse Acting

Size		Alloy steel	Alloy hard faced T. Carbide	S.S 410 Nace	S.S 410 Hard faced	Alloy Steel Hard faced Colmonoy
2 1/16” – 2/3/5/10K	Standard Acting	258052-03	258052-04	258052-05	258052-02	258052-10
2 9/16”-2/3/5/10K	Standard Acting	264268-02	264268-03	264268-04	264268-05
3 1/8”-2/3/5K	Standard Acting	258057-06	258057-07	258057-08	258057-05	258057-13
3 1/16” 10K	Standard Acting	264596-02	264596-01	264596-03	264596-04	264596-05
4 1/16” 2/3/5/10K	Standard Acting	258506-16	258506-14	258506-15	258506-12
5 1/8” 2/3/5/K New Design	Standard Acting	258063-02	258063-03	258063-04	258063-05
5 1/8” 10K New Design	Standard Acting	264486-03	264486-04	264486-05	264486-06
5 1/8” 2/3/5K Old Design	Standard Acting	259351-02	259351-03	259351-04	259351-05
5 1/8” 10K Old Design	Standard Acting	265340-01	265340-02	265340-03	265340-04
6 1/8” 2/3/5/K	Standard Acting	259038-02	259038-03	259038-04	259038-05
6 3/8” 2/3/5/10K	Standard Acting	259287-05	259287-06	259287-07	259287-04
7 1/8” 2/3/5K	Standard Acting	259182-03	259182-02
9”-3/5K. 8.125” Non API Bore	Standard Acting	268960-02			268960-03
2 1/16” 2/3/5/10K	Reverse Acting	258045-04	258054-05	258054-06	258054-07
2-9/16” 2/3/5/10K	Reverse Acting	265325-01	265325-02	265325-03	265325-04
3 1/8” 2/3/5K	Reverse Acting	265326-01	265326-02	265326-03	265326-04
3 1/16” 10K	Reverse Acting	258124-05	258124-04	258124-06	258124-07
4 1/8” 2/3/5/10K	Reverse Acting	258672-06	258672-07	258672-08	258672-09
5 1/8” 2/3/5K New Design	Reverse Acting	258064-03	258064-04	258064-05	258064-06
5 1/8” 10K New Design	Reverse Acting	264508-03	264508-04	264508-05	264508-06
5 1/8” 2/3/5K Old Design	Reverse Acting	259352-02	259352-03	259352-04	259352-05
5 1/8” 10K Old Design	Reverse Acting	265341-01	265341-02	265341-03	265341-04
6 1/8 -2/3/5K	Reverse Acting	259132-02	259132-03	259132-04	259132-05
6 1/8” 2/3/5/10K	Reverse Acting	259286-05	259282-06	259286-07	259286-04
