American Oil Tools sales only the highest quality aftermarket OEM style valve parts for Cameron & Oteco Mud Valve (2,000 PSI). All of our Cameron & Oteco Mud Valve (2,000 PSI)  valve parts are "made in the USA". Our Cameron & Oteco Mud Valve (2,000 PSI) spares are competitively priced, offer exceptional quality and durability. Valve manufactures and models  include:


Valve PartsCameron Reset Relief Valve Type "B" •  Cameron & Oteco Mud Valve  •  Cameron Back Pressure Valve  •  Cameron Check Valve Type MS & Type R  •  Cameron H2 Choke  •  Cameron Hydraulic Drilling Choke  •  Cameron Hydraulic Gate Valve Type FC  •  Cameron Manual Gate Valve Type F & FC  •  Cameron Manual Gate Valve Type FL  •  Cameron Subsea Gate Valve "AF" & "DF"  •  Demco Mud Valve Type "DM"  •  Major OEM Choke Parts  •  McEvoy Model "C" Gate Valve  •  Shaffer Gate Valve Type B  •  Swaco Hydraulic Drilling Choke  •  WKM Gate Valve Model M & M-1.

Please click on the links below under valves for additional information.


Valves

Cameron Reset Relief Valve Type "B"
Cameron & Oteco Mud Valve
Cameron Back Pressure Valve
Cameron Check Valve Type MS
Cameron Check Valve Type R

Cameron H2 Choke
Cameron Hydraulic Drilling Choke
Cameron Hydraulic Gate Valve Type F & Type FC


Cameron Hydraulic Gate Valve Type F & Type FC
Cameron Manual Gate Valve Type F & FC
Cameron Manual Gate Valve Type FL

McEvoy Model "C" Gate Valve
Shaffer Gate Valve Type B
Swaco Hydraulic Drilling Choke
WKM Gate Valve Model M & M-1

 Cameron & Oteco Mud Valve (2,000 PSI)

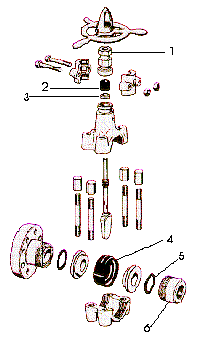

Valve Assembly

1. Body
2. Cap
3. Sub
4. Gate
5. Stem Nut
6. Bonnet Assy
7. Hand wheel
8. Stem Packing
9. Stem Packing ring
10.Gate Packing
11.Wear Plate
12.O-Ring
13.Studs
14.Studs Nuts
15.Studs Including 6
16.Nuts Including 6
17.Grease Fitting



2,000 PSI



2" SCR

2" Flg

3" SCR

3" Flg

4" SCR

4" Flg

  35088-02-01-01 35088-02-03-01 35088-03-01-01 35088-03-03-01 35088-04-01-01 35088-04-03-01
1 9819  9819  9809  9827 9827
2 18865  18865  18868  18868 18869 18869
3 18755-01  18919-01  18755-02  18919-02  18755-03  19819-03
4 35342-01  35342-01  35342-03  35342-03  35342-05  35342-05
5 35346-01  35346-01  35346-02  35346-02  35346-03  35346-03
6 35341-01  35341-01  35341-02  35341-02  35341-03  35341-03
7 35347-01  35347-01  35347-02  35347-02  35347-03  35347-03
8 8311-06  8311-06  8311-03  8311-03  8311-01  8311-01
9 6981-07  6981-07  6981-01  6981-01  6981-05  6981-05
10 9828  9828  9832  9832  9834  9834
11 35345-01  35345-01  35345-02  35345-02  35345-03  35345-03
12 18491-35  18491-35  18492-10  18492-10  18492-27  18492-27
13 5912-04  5912-04  5912-55  5912-55  5912-58  5913-58
14 18912-01  18912-01  18912-01  18912-01  19812-02  18912-02
15 12672-06  12672-06  12672-07  12672-07  12672-53  12672-53
16 5926-05  5926-05  5926-05  5926-05  5926-05  5926-05
17 5929-01  5929-01  5929-01  5929-01  5929-01   5929-01

Cameron & Oteco Mud Valve (3,000 PSI)

Valve Assembly

1. Body
2. Cap
3. Sub
4. Gate
5. Stem Nut
6. Bonnet Assy
7. Hand wheel
8. Stem Packing
9. Stem Packing ring
10.Gate Packing
11.Wear Plate
12.O-Ring
13.Studs
14.Studs Nuts
15.Studs Including 6
16.Nuts Including 6
17.Grease Fitting



3,000 PSI



2" SCR

2" Flg

3" SCR

3" Flg

4" SCR

4" Flg

  35088-02-07-01 35088-02-09-01 35088-03-08-01 35088-03-10-01 35088-04-13-01 35088-04-15-01
1 8197 8197  8313  8313  8214  8214
2 18868 18868  18867  18867  18870  18870
3 17783-01 17786-01  17783-03  17786-02  17783-02  17786-04
4 35342-02 35342-02  35342-04  35342-04  35342-06  35342-06
5 35346-02 35346-02  35346-03  35346-03  35346-04  35346-04
6 35341-02 35341-02  35341-03  35341-03  35341-04  35341-04
7 35347-02 35347-02  35347-03  35347-03  35347-04  35347-04
8 8311-03 8311-03  8311-01  8311-01  8311-04  8311-04
9 6981-01 6981-01  6981-05  6981-05  6981-02  6981-02
10 7638-01 7638-01  8980  8980  7638-02  7638-02
11 35344-01 35344-01  35344-02  35344-02  35344-03  35344-03
12 18492-35 18492-35  18493-02  18493-02  18493-21  18492-21
13 5912-55 5912-55  5914-18  5914-18  5915-40  5915-40
14 18912-01 18912-01  18912-03  18912-03  18912-04  18912-04
15 12672-07 12672-07  12672-53  12672-53  12672-65  12672-65
16 5926-05 5926-05  5926-05  5926-05  5926-05  5926-05
17 5929-01 5929-01  5929-01  5929-01  5929-01  5929-01

Cameron & Oteco Mud Valve (5,000 PSI)



 Valve Assembly

1. Body
2. Cap
3. Sub
4. Gate
5. Stem Nut
6. Bonnet Assy
7. Hand wheel
8. Stem Packing
9. Stem Packing ring
10.Gate Packing
11.Wear Plate
12.O-Ring
13.Studs
14.Studs Nuts
15.Studs Including 6
16.Nuts Including 6
17.Grease Fitting



5,000 PSI

2" SCR

2" Flg

3" SCR

3" Flg

4" SCR

4" Flg

   25088-02-21-01  35088-02-23-01  35088-03-21-01  35088-03-23-01  35088-04-27-01  35088-04-29-01
1  12985  12985  12983  12983  12975  12975
2  18914  18914  18915  18915  18916  18916
3  17783-01  17786-01  17783-03  17786-07  17783-02  17786-03
4  35342-02  35342-02  35342-04  35342-04  35342-06  35342-06
5  35346-02  35346-02  35346-03  35346-03  35346-04  35346-04
6  35341-02  35341-02  35341-03  35341-03  35341-04  35341-04
7  35347-02  35347-02  35347-03  35347-03  35347-04  35347-04
8  8311-03  8311-03  8311-01  8311-01  8311-04  8311-04
9  6981-01  6981-01  6981-05  6981-05  6981-02  6981-02
10  7638-01  7638-01  8980  8980 7638-02  7638-02
11  35344-01  35344-01  35344-02  35344-02  35344-03  35344-03
12  18492-35  18492-35  18493-2  18493-2  18492-21  18492-21
13  5913-26  5913-26  5915-66 5915-66 5917-43  5917-43
14  18913-01  18913-01  18913-02  18913-02  18913-03  18913-03
15  12672-07  12672-07  12672-53  12672-53  12672-65  12672-65
16  5926-05  5926-05  5926-05  5926-05  5926-05  5926-05
17  5929-01  5929-01  5929-01  5929-01  5929-01  5929-01
