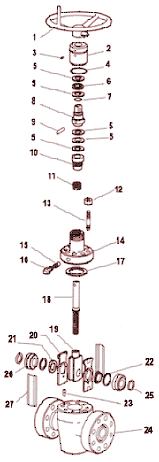

Cameron Gate Valves Model F & FC 1-13/16" 10-15,000 PSI

Description	1-13/16" 10,000	1-13/16" 10,000	1-13/16" 15,000	1-13/16" 15,000
Trim	Stainless Steel	Super Trim	Stainless Steel	Super Trim
1. Hand Wheel	19937-01	19937-01	19337-03	19337-03
2. Bearing Cap	19106-01	19106-01	19106-01	19106-01
3. Grease Fitting	5929-05	5929-05	5929-05	5929-05
4. O-Ring	6227-43-38-50	6227-43-38-50	6227-43-38-50	6227-43-38-50
5. Bearing Race	19108-01	19108-01	19108-01	19108-01
6. Thrust Bearing	5931-09	5931-09	5931-09	5931-09
7. O-Ring	6227-27-01-70	6227-27-01-70	6227-27-01-70	6227-27-01-70
8. Stem Adapter	20871-01	20871-01	20871-01	20871-01
9. Stem Pin	21812-14	21812-14	21812-14	21812-14
10. Packing Gland	20874-01	20874-01	20874-01	690162
			666852-01	691889-01
11. Stem Packing	23678-01	686598-01	691889-01	691889-01
12. Nut	5926-25-10	5926-25-10	5926-23-10	5926-23-10
13. Stud	5914-21-10	5914-21-10	5915-25-10	5915-25-10
14. Bonnet	33297-02-01	33297-02-01	33297-03-01	33297-03-01
15. Check Valve	19776-01	678627-01-99	19776-01	678627-01
16. Grease Fitting	5929-25	5929-25	5929-25	5929-25
(F)	19141-06	19141-06	19141-06	19141-06
17. Bonnet Gasket )	( FC) 44671-01	44671-01	44671-01	44671-01
*. Gate &Seat Assy.	21353-17-02	21353-17-16	21353-17-03	21353-17-16
18. Stem	19285-01	29381-01-99	19285-01	29381-01-99
*19. Gate	19797-03	23039-02	19797-02	23039-02
*20. Retainer Plate	611404-09	611404-09	611404-09	611404-09
*21. Seat Ring	611527-01	611527-01	611527-01	611527-01
*22. Seal Ring	610500-49	610500-49	610500-49	610500-49
23. Pin
24. Body	44651-01	44651-01	44648-01	44648-01
**. Name Plate	19052-01	19052-01	19052-01	19052-01
25. Seal Ring	610500-49	610500-49	610500-49	610500-49
26. Body Bushing	630693-02	630693-02	630693-02	630693-02
27. Guide	44646-01	44646-01	44646-01	44646-01

Cameron Gate Valves Model F & FC 2-1/16" 5-15,000 PSI

Description	2-1/16" 5,000	2-1/16" 5,000	2-1/16" 10,000	2-1/16" 10,000	2-1/16" 15,000	2-1/16" 15,000
Trim	Regular Trim	Super Trim	SS Trim	Super Trim	SS Trim	Super Trim
1. Hand Wheel	19937-01	19937-01	19337-03	19337-03	19937-03	19937-03
2. Bearing Cap	19106-01	19106-01	19106-01	19106-01	19106-01	19106-01
3. Grease Fitting	5929-05	5929-05	5929-05	5929-05	5929-05	5929-05
4. O-Ring	6227-43-38-50	6227-43-38-50	6227-43-38-50	6227-43-38-50	6227-43-38-50	6227-43-38-50
5. Bearing Race	19108-01	19108-01	19108-01	19108-01	19108-01	19108-01
6. Thrust Bearing	5931-09	5931-09	5931-09	5931-09	5931-09	5931-09
7. O-Ring	6227-27-01-70	6227-27-01-70	6227-27-01-70	6227-27-01-70	6227-27-01-70	6227-27-01-70
8. Stem Adapter	20871-01	20871-01	20871-01	20871-01	20871-01	20871-01
9. Stem Pin	21812-14	21812-14	21812-14	21812-14	21812-14	21812-14
10. Packing Gland	20874-01	20874-01	20874-01	20874-01	20874-01	690162
					666853-01	686598-01
11. Stem Packing	23678-01	686598-01	23678-01	686598-01	691889-01	691889-01
12. Nut	5926-09-10	5926-09-10	5926-25-10	5926-25-10	5926-23-10	5923-23-10
13. Stud	5912-67-10	5912-67-10	5914-18-10	5914-18-10	5915-67-10	5915-67-10
14. Bonnet	33297-01-01	33297-01-01	33297-04-01	33297-04-01	33297-05-01	33297-05-01
15. Check Valve			19776-01	678627-01-99	19776-01	678627-01-99
16. Grease Fitting	5929-25	5929-55	5929-25	5929-55	5929-25	5929-55
(F)
17. Bonnet Gasket	21793-09	21793-11	19141-07	19141-07	19141-07	19141-07
*. Gate & Seat Assy.	21353-02-01	21353-02-12	21353-02-13	21353-02-13	21353-02-03	21353-02-13
18. Stem	19778-01	29381-01-99	29381-01-99	29381-01-99	19285-01	29381-01-99
*19. Gate	19798-04	694493-01	19797-03	23042-02	19798-03	23042-02
*20. Retainer Plate	611404-01	611404-01	611404-01	611404-01	611404-01	611404-01
*21. Seat Ring	44844-06	44844-06	44844-06	44844-06	44844-06	44844-06
*22. Seal Ring	610500-23	610500-23	610500-23	610500-23	610500-23	610500-23
23. Pin	21813-06	21813-06
24. Body	694812-01-01	694812-01-01	235000-01-01	235000-01-01	610591-01	610591-02
**. Name Plate	19052-01	19052-01	19050-01	19052-01	19052-01	19052-01
25. Seal Ring	610500-23	610500-23	610500-23	610500-23	610500-23	610500-23
26. Body Bushing	630691-01	630691-01	630691-01	630691-01	630691-01	630691-01
27. Guide	694811-01	694811-01	694811-01	694811-01	694811-01	694811-01

Cameron Gate Valves Model F & FC 2-1/16" 5-15,000 PSI

Description	2-1/16" 5,000	2-1/16" 5,000	2-1/16" 10,000	2-1/16" 10,000	2-1/16" 15,000	2-1/16" 15,000
Trim	Regular Trim	Super Trim	SS Trim	Super Trim	SS Trim	Super Trim
1. Hand Wheel	19937-01	19937-01	19337-03	19337-03	19937-03	19937-03
2. Bearing Cap	19106-01	19106-01	19106-01	19106-01	19106-01	19106-01
3. Grease Fitting	5929-05	5929-05	5929-05	5929-05	5929-05	5929-05
4. O-Ring	6227-43-38-50	6227-43-38-50	6227-43-38-50	6227-43-38-50	6227-43-38-50	6227-43-38-50
5. Bearing Race	19108-01	19108-01	19108-01	19108-01	19108-01	19108-01
6. Thrust Bearing	5931-09	5931-09	5931-09	5931-09	5931-09	5931-09
7. O-Ring	6227-27-01-70	6227-27-01-70	6227-27-01-70	6227-27-01-70	6227-27-01-70	6227-27-01-70
8. Stem Adapter	20871-01	20871-01	20871-01	20871-01	20871-01	20871-01
9. Stem Pin	21812-14	21812-14	21812-14	21812-14	21812-14	21812-14
10. Packing Gland	20874-01	20874-01	20874-01	20874-01	20874-01	690162
					666853-01	686598-01
11. Stem Packing	23678-01	686598-01	23678-01	686598-01	691889-01	691889-01
12. Nut	5926-09-10	5926-09-10	5926-25-10	5926-25-10	5926-23-10	5923-23-10
13. Stud	5912-67-10	5912-67-10	5914-18-10	5914-18-10	5915-67-10	5915-67-10
14. Bonnet	33297-01-01	33297-01-01	33297-04-01	33297-04-01	33297-05-01	33297-05-01
15. Check Valve			19776-01	678627-01-99	19776-01	678627-01-99
16. Grease Fitting	5929-25	5929-55	5929-25	5929-55	5929-25	5929-55
(F)
17. Bonnet Gasket	21793-09	21793-11	19141-07	19141-07	19141-07	19141-07
*. Gate & Seat Assy.	21353-02-01	21353-02-12	21353-02-13	21353-02-13	21353-02-03	21353-02-13
18. Stem	19778-01	29381-01-99	29381-01-99	29381-01-99	19285-01	29381-01-99
*19. Gate	19798-04	694493-01	19797-03	23042-02	19798-03	23042-02
*20. Retainer Plate	611404-01	611404-01	611404-01	611404-01	611404-01	611404-01
*21. Seat Ring	44844-06	44844-06	44844-06	44844-06	44844-06	44844-06
*22. Seal Ring	610500-23	610500-23	610500-23	610500-23	610500-23	610500-23
23. Pin	21813-06	21813-06
24. Body	694812-01-01	694812-01-01	235000-01-01	235000-01-01	610591-01	610591-02
**. Name Plate	19052-01	19052-01	19050-01	19052-01	19052-01	19052-01
25. Seal Ring	610500-23	610500-23	610500-23	610500-23	610500-23	610500-23
26. Body Bushing	630691-01	630691-01	630691-01	630691-01	630691-01	630691-01
27. Guide	694811-01	694811-01	694811-01	694811-01	694811-01	694811-01

Cameron Gate Valves Model F & FC 2-9/16" 5-15,000 PSI

Description	2-9/16" 5,000	2-9/16" 5,000	2-9/16" 10,000	2-9/16" 10,000	2-9/16" 15,000	2-9/16" 15,000	2-9/16" 15,000
Trim	Regular Trim	Super Trim	SS Trim	Super Trim	SS Trim	Super Trim	Full SS
1. Hand Wheel	19337-01	19337-01	19337-03	19337-03	19337-03	19337-03	19337-03
2. Bearing Cap	19106-01	19106-01	19106-01	19106-01	19312-01	19312-01	19312-01
3. Grease Fitting	5929-05	5929-05	5929-05	5929-05	5929-05	5929-05	5929-05
4. O-Ring	6227-43-38-50	6227-43-38-50	6227-43-38-50	6227-43-38-50	6227-43-38-50	6227-43-38-50	6227-43-38-50
5. Bearing Race	19108-01	19108-01	19108-01	19108-01	19310-01	19310-01	19310-01
6. Thrust Bearing	5931-09	5931-09	5931-09	5931-09	5931-10	5931-10	5931-10
7. O-Ring	6227-27-01-70	6227-27-01-70	6227-01-70	6227-27-01-70	6230-02-01-70	6230-02-01-70	6230-02-01-70
8. Stem Adapter	20871-01	20871-01	20871-01	20871-01	20873-01	20873-01	20873-01
9. Stem Pin	21812-14	21812-14	21812-14	21812-14	21812-15	21812-15	21812-15
10. Packing Gland	220874-01	20874-01	20874-01	690162	20890-01	20890-01	20890-01

11. Stem Packing	23678-01	686598-01	23678-01	686598-01	666853-02	666853-02	666853-02
12. Nut	5926-10-10	5926-10-10	5926-23-10	5926-23-10	5926-25-10	5926-25-10	5926-25-10
13. Stud	5915-60-10	5915-60-10	5915-40-10	5915-40-10	5926-2-10	5926-2-10	5926-2-10
14. Bonnet	33297-06-01	33297-06-01	33297-08-01	33297-08-01	33298-01-01	33298-01-01	33298
15. Check Valve			19776-01	678627-01-99	19776-01	678627-01-99	19776-01
16. Grease Fitting	5929-25	5929-55	5929-25	5929-55	5929-25	5929-55	5929-55
(F)					19141-12	19141-12	19141-12
17. Bonnet Gasket	21793-10	21793-12	19141-08	19141-08	44671-2	44671-2	44671-2
*. Gate & Seat Assy.	21353-25-03	21353-25-20	21353-25-04	21353-25-14	21353-25-05	21353-25-16	21353-25-15
18. Stem	19778-02	29381-02-99	19285-02	29381-02-99	23253-03	38228-03-99	23283-03
*19. Gate	19799-05	23786-01	19799-03	23044-02	20986-03	23426-02	20986-03
*20. Retainer Plate	611404-11	611404-11	611404-11	611404-11	611404-07	611404-07	611404-08
*21. Seat Ring	44839-06	44839-06	44839-06	44839-06	44922-06	44922-06	44922-06
*22. Seal Ring	610500-33	600500-33	610500-33	610500-33	610500-52	610500-52	610500-52
23. Pin	21813-06	21813-06			689623-02
24. Body	694812-04-01	698412-04-01	32878-11	32878-11	44645-01	44645-01	44645-02
**. Name Plate	19052-01	19052-01	19052-01	19052-01	19052-01	19052-01	19052-01
25. Seal Ring	610500-33	610500-33	610500-33	610500-33	610500-52	610500-52	610500-52
26. Body Bushing	630597-01	630597-01	630597-01	630597-01	630501-01	630501-01	630501-01
27. Guide	235041-01	235041-01	235041-01	235041-01	44641-01	44641-01	44641-01

Model F& FC 3-1/8" 5,000 and 3-1/16" 10-15,000 PSI

Description	3 1/8” 5,000	3 1/8” 5,000	3 1/16” 10,000	3 1/16” 10,000	3 1/16” 15,000	3 1/16” 15,000	3 1/16” 15,000
Trim	Regular Trim	Super Trim	S.S. Trim	Super Trim	S.S. Trim	Super Trim	SS w/super Trim
1. Hand Wheel	19937-03	19937-03	20774-02	20774-02	20774-02	20774-02	20774-02
2. Bearing Cap	19106-01	19106-01	19106-01	19106-01	678472-01	678472-01	678472-01
3. Grease Fitting	5929-05	5929-05	5929-05	5929-05	5929-05	5929-05	5929-05
4. O-Ring	6227-43-38-50	6227-43-38-50	6227-43-38-50	6227-43-38-50	6227-56-38-80	6227-56-38-50	6227-56-38-50
5. Bearing Race	19108-01	19108-01	19108-01	19108-01	19310-02	19310-02	19310-02
6. Thrust Bearing	5931-09	5931-09	5931-09	5931-09	5931-22	5931-22	5931-22
7. O-Ring	6227-27-01-70	6227-27-01-70	6227-27-01-70	6227-27-01-70	6230-08-01-70	6230-08-01-70	6230-08-01-70
8. Stem Adapter	20871-01	20871-01	20871-01	20871-01	678474-01	678474-01	678474-01
9. Stem Pin	21812-14	21812-14	21812-14	21812-14	21812-60	21812-60	21812-60
10. Packing Gland	20874-01	20874-01	20874-01	20874-01	677509-02	677509-02	677509-02
					691889-03	691889-03	691889-03
11. Stem Packing	23678-01	686598-01	23678-01	686598-01	666853-11	686598-12	686598-12
12. Nut	5926-25-10	5926-25-10	5926-24-10	5926-24-10	18573-06-10	18573-06-10	18573-06-10
13. Stud	5914-21-10	5914-21-10	5915-33-10	5917-33-10	5914-95-10	5914-95-10	5914-95-10
14. Bonnet	33297-09-01	33297-09-01	33297-10-01	33297-10-01	677513-02-01	677513-02-01	677513-02-02
15. Check Valve			19776-01	678627-01-99	19776-01	678627-01-99	678627-01-99
16. Grease Fitting	5929-25	5929-55	5929-25	5929-55	5929-25	5929-55	5929-55
(F)					(F) 19141-13	(F) 19141-13	(F)19141-13
17. Bonnet Gasket	21793-08	21793-27	19141-10	19141-10	(FC) 44671-04	(FC) 44671-04	(FC) 44671-04
*. Gate & Seat Assy.	21353-03-01	21353-03-16	21353-03-02	21353-03-07	21353-03-32	21353-25-34	21353-03-33
18. Stem	19778-03	29381-03	19285-03	29381-49	687853-01	688590-01-99	688590-01-99
*19. Gate	19800-03	23791-01	19800-02	23247-02	677512-01	678253-01	677512-01
*20. Retainer Plate	611404-03	611404-03	611404-03	611404-03	611404-15	611404-15	611404-15
*21. Seat Ring	44783-06	44783-06	44783-06	44783-06	678353-01	678353-01	678353-01
*22. Seal Ring	610500-50	610500-50	610500-50	610500-50	610500-55	610500-55	610500-55
23. Pin	21813-06	21813-06
24. Body			694480-01	694480-01	44830-01	44737-01	44830-02
**. Name Plate	19052-01	19052-01	19052-01	19052-01	19052-01	19052-01	19052-01
25. Seal Ring	610500-50	610500-50	610500-50	610500-50	610500-55	610500-55	610500-55
26. Body Bushing	630690-01	630690-01	630469-03	630469-03	630471-02	630471-02	630471-02

Cameron Gate Valves Model F & FC 4-1/16" 5-15,000 PSI

Description	4-1/16" 5,000	4-1/16" 5,000	4-1/16" 10,000	4-1/16" 10,000	4-1/16" 15,000	4-1/16" 15,000	4-1/16" 15,000
1. Hand Wheel	Regular Trim	Super Trim	SS Trim	Super Trim	SS Trim	Super Trim	SS w/Super Trim
1. Hand Wheel	19937-03	19937-03	20774-02	20774-02	20774-02	20774-02	20774-02
2. Bearing Cap	19106-01	19106-01	19312-01	19312-01	681111-01	681111-01	681111-01
3. Grease Fitting	5929-05	5929-05	5929-05	5929-05	5929-05	5929-05	5929-05
4. O-Ring	6227-43-38-50	6227-43-38-50	6227-46-38-50	6227-46-38-50
5. Bearing Race	19108-01	19108-01	19310-01	19310-01
6. Thrust Bearing	5931-09	5931-09	5931-10	5931-10	5931-22	5931-22	5931-22
7. O-Ring	6227-27-01-70	6227-27-01-70	6230-02-01-70	6230-02-01-70	6854-48	6854-48	6854-48
8. Stem Adapter	20871-01	20871-01	20873-01	20873-01	681112-01	681112-01	681112-08
9. Stem Pin	21812-14	21812-14	21812-15	21812-15	21813-34	21813-34	21813-34
10. Packing Gland	20874-01	20874-01	20890-01	690169	681113-01	690164	690164

11. Stem Packing	23678-01	686598-01	23678-02	686598-02	666853-11	686598-12	686598-12
12. Nut	5926-23-10	5926-23-10	5926-27-10	5926-27-10	5926-28-10	5926-28-10	5926-28-10
13. Stud	5915-67-10	5915-67-10	6306-22-10	6306-22-10	7311-06-10	7311-06-10	7311-06-10
14. Bonnet	33297-14-01	33297-14-01	33298-02-01	33298-02-01	682254-01	682254-01	682254-02
15. Check Valve			19776-01	678627-01-99	19776-01	678627-01-99	678627-01-99
16. Grease Fitting	5929-25	5929-55	5929-25	5929-55	5929-25	5929-55	5929-55
(F)
17. Bonnet Gasket	21794-20	21794-03	19141-11	19141-11	19141-15	19141-15	19141-15
*. Gate & Seat Assy.	21353-04-01	21353-04-11	21353-04-03	21353-04-12	21353-04-41	21353-04-42	21353-04-43
18. Stem	19778-04	29381-04-99	23253-01	38228-01-99	682256-01	682564-01-99	682564-01-99
*19. Gate	19801-03	23248-01	19794-02	23249-01	682255-01	682255-02	682255-05
*20. Retainer Plate	611404-05	611404-05	611404-17	611404-17	682257-01	682257-01	682257-02
*21. Seat Ring	610482-03	610482-03	610978-02	610978-02	611535-02	611535-02	611535-02
*22. Seal Ring	610500-47	610500-47	610500-47	610500-47	610500-58	610500-58	610500-58
23. Pin	21813-06	21813-06
24. Body					611288-03	19052-01	611288-04
**. Name Plate	19053-01	19052-01	19052-01	19052-01	19052-01	19052-01	19052-01
25. Seal Ring	610500-47	610500-47	610500-47	610500-47	610500-58	610500-58	610500-58
26. Body Bushing	630472-02	630472-02	610774-02	610774-02	630706-02	630706-02	630706-02
27. Guide	694816-01	694816-01	694406-01	694404-01	611054-01	611045-01	611045-01

Disclaimers:
American Oil Tools, Inc. is not an authorized agent or sales representative of the manufactures listed on this page. Cameron Brewster, Continental Emsco, Ellis Williams, Gaso, Gardner Denver, Liners, Pistons, Ideco, National, Oilwell, OPI, Skytop, Wheatley, and Wilson are registered trademarks of their respective companies.

American Oil Tools is an oilfield equipment supplier for valves, mud pump spares, blowout preventer parts, drilling equipment, downhole tools, blowout preventer spares and mud pump consumables.
