 American Oil Tools sales only the highest
quality aftermarket OEM style parts for Cameron Back Pressure Valves.
All of our Cameron Back Pressure Valve parts are "made in the
USA". Our Cameron Back Pressure Valve spares are competitively
priced, offer exceptional quality and durability. Valve manufactures
and models include: |
|
Cameron Back Pressure Valve |
 |
|
Nominal Size |
Maximum OD |
Part Number |
Tubing Hanger |
Christmas Tree |
|

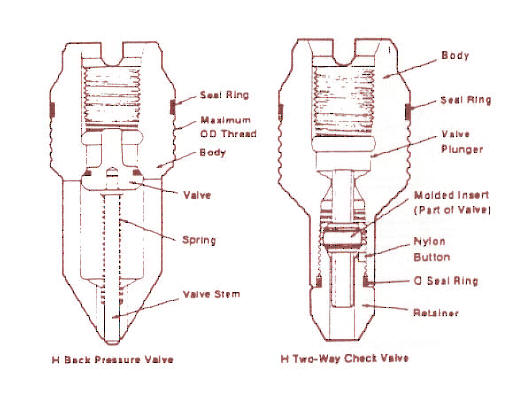

H
Back Pressure Valve |
H
Two-Way Check Valve |
HM Two-Way Check Valve |
Tubing OD |
Minimum Bore BPV Threads |
Minimum
Vertical Bore |
Christmas Tree Minimum Drift Dia. |
|
1 Ό |
1.356 |
30246-08 |
41612-01 |
|
1.660 |
1.286 |
|
|
|
1 ½ |
1.605 |
30246-02 |
41612-02 |
|
1.900 |
1.525 |
1-5/8 |
1.610 |
|
1 Ύ |
1.775 |
30246-06 |
41612-03 |
609761 |
2.063 |
1.695 |
1-13/16 |
1.795 |
|
2 |
2.020 |
30246-01 |
41612-04 |
640018 |
2.375 |
1.940 |
2-1/16 |
2.030 |
|
2 ½ |
2.485 |
30246-03 |
41612-05 |
|
2.875 |
2.405 |
2-9/16 |
2.500 |
|
3 |
3.030 |
30246-04 |
41612-06 |
640156 |
3.500 |
2.950 |
3-1/8 |
3.060 |
|
3 ½ |
3.530 |
30246-07 |
41612-07 |
|
4.000 |
3.450 |
4-1/16 |
3.580 |
|
4 |
3.980 |
30246-05 |
41612-08 |
|
4.500 |
3.900 |
4-1/16 |
4.020 |
|
|
|
|
|
|
|
