We sale only the highest quality aftermarket OEM style valve parts for Cameron Hydraulic Drilling Choke. All of our Cameron Hydraulic Drilling Choke parts are "made in the USA". Our Cameron Hydraulic Drilling Choke valve spares are competitively priced, offer exceptional quality and durability. Valve manufactures and models include:
Cameron Reset Relief Valve Type "B" • Cameron &
Oteco Mud Valve • Cameron Back Pressure Valve •
Cameron Check Valve Type MS & Type R • Cameron H2 Choke
• Cameron Hydraulic Drilling Choke • Cameron
Hydraulic Gate Valve Type FC • Cameron Manual Gate Valve
Type F & FC • Cameron Manual Gate Valve Type FL •
Cameron Subsea Gate Valve "AF" & "DF" • Demco Mud Valve
Type "DM" • Major OEM Choke Parts • McEvoy
Model "C" Gate Valve • Shaffer Gate Valve Type B •
Swaco Hydraulic Drilling Choke • WKM Gate Valve Model M
& M-1.
Please click on the links below under valves for additional information.
Cameron Reset Relief Valve Type "B"
Cameron & Oteco Mud Valve
Cameron Back Pressure Valve
Cameron Check Valve Type MS
Cameron Check Valve Type R
Cameron H2 Choke
Cameron Hydraulic Drilling Choke
Cameron Hydraulic Gate Valve Type F & Type FC
Cameron Hydraulic Gate Valve Type F & Type FC
Cameron Manual Gate Valve Type F & FC
Cameron Manual Gate Valve Type FL
McEvoy Model "C" Gate Valve
Shaffer Gate Valve Type B
Swaco Hydraulic Drilling Choke
WKM Gate Valve Model M & M-1

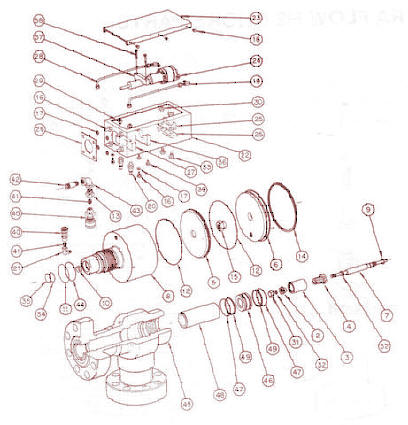

Cameron Hydraulic Drilling Choke
|
Item |
Description |
Item |
Description |
Item |
Description |
|
1 |
Hydraulic Actuator |
18 |
Screw |
35 |
O-ring |
|
2 |
Front Retainer |
19 |
Elbow |
36 |
Lower Stabilizer Mount |
|
3 |
Gate |
20 |
Quick-Connect |
37 |
Upper Stabilizer Mount |
|
4 |
Rear Retainer |
21 |
Elbow |
38 |
Cap Screw |
|
5 |
Piston |
22 |
Housing |
39 |
Screw |
|
6 |
Cover |
23 |
Cover |
40 |
Quick-Connect |
|
7 |
Actuator Rod |
24 |
Regulator |
41 |
Nipple |
|
8 |
Actuator Body |
25 |
Spacer Mount |
42 |
Nipple |
|
9 |
O-ring |
26 |
Spacer |
43 |
Elbow |
|
10 |
O-ring |
27 |
Adapter |
44 |
Back-Up Ring |
|
11 |
O-ring |
28 |
Tubing |
45 |
Body |
|
12 |
O-ring |
29 |
Connector |
46 |
Seat |
|
13 |
Pipe Bushing |
30 |
Nut |
47 |
O-ring |
|
14 |
Retainer Ring |
31 |
Retainer Cap |
48 |
Wear Sleeve |
|
15 |
Locknut |
32 |
Lock Washer |
49 |
Back-Up Ring |
|
16 |
Cap Screw |
33 |
Screw |
|
UTV Packing |
|
17 |
Lock Washer |
34 |
Back-Up Ring |
|
Back-Up Ring |
Cameron Hydraulic Drilling Choke 3 1/16 10,000-15,000 PSI
| Item | Description | 3 1/16” 10,000 PSI | 3 1/16” 15,000 PSI |
| 1 | Hydraulic Actuator | 40992 | 40947 |
| 2 | Front Retainer | 40985 | 40988 |
| 3 | Gate | 614415-01 | 614415-01 |
| 4 | Rear Retainer | 40989 | 40989 |
| 5 | Piston | 40895 | 40855 |
| 6 | Cover | 40117 | 40117 |
| 7 | Actuator Rod | 40986 | 40851 |
| 8 | Actuator Body | 40987 | 40856 |
| 9 | O-ring | 702640-11-44 | 702640-11-44 |
| 10 | O-ring | 702640-21-84 | 702640-21-44 |
| 11 | O-ring | 702640-24-14 | 702640-24-14 |
| 12 | O-ring | 31423-35-96-95 | 21423-35-96-95 |
| 13 | Pipe Bushing | 6888-15 | 6888-15 |
| 14 | Retaining Ring | 33186-45 | 33186-45 |
| 15 | Lock Nut | 667172-23 | 667172-23 |
| 16 | Cap Screw | 702502-06-00-06 | 702502-06-00-06 |
| 17 | Lock Washer | 702529-11-02 | 702520-11-02 |
| 18 | Screw | 702511-11-00-08 | 702511-11-00-08 |
| 19 | Elbow | 40548-23 | 40548-23 |
| 20 | Quick-Connect | 40548-05 | 40548-05 |
| 21 | Elbow | 6560-12 | 6560-12 |
| 22 | Housing | 615095-01 | 615095-01 |
| 23 | Cover | 614233-01 | 614233-01 |
| 24 | Regulator | 40958 | 40958 |
| 25 | Spacer Mount | 40107 | 40107 |
| 26 | Spacer | 40108 | 40108 |
| 27 | Adapter | 40109 | 40109 |
| 28 | Tubing | 97495-18 | 97495-18 |
| 29 | Connector | 40548-22 | 40548-22 |
| 30 | Nut | 702518-02-02 | 702518-02-02 |
| 31 | Retainer Cap | 40853 | 40858 |
| 32 | Lock Washer | 614750-01 | 614750-01 |
| 33 | Cap Screw | 702502-02-00-12 | 702502-02-00-12 |
| 34 | Back-Up Ring | 705926 | 705926 |
| 35 | O-ring | 702640-22-64 | 702640-22-64 |
| 36 | Lower Stabilizer Mount | 41058-01 | 41058-01 |
| 37 | Upper Stabilizer Mount | 41058-02 | 41058-02 |
| 38 | Cap Screw | 702502-02-00-14 | 702502-02-00-14 |
| 39 | Screw | 702502-02-00-16 | 702502-02-00-16 |
| 40 | Quick-Connect | 40548-16 | 40548-16 |
| 41 | Nipple | 33486-30 | 33486-30 |
| 42 | Nipple | 21012-45 | 21012-45 |
| 43 | Elbow | 675029-16 | 675029-16 |
| 44 | Back-Up Ring | 705925 | 705925 |
| 45 | Body | 40929 | 41555 |
| 46 | Seat | 614387-02 | 614387-02 |
| 47 | O-ring | 702640-34-24 | 702640-34-24 |
| 48 | Wear Sleeve | 40841 | 40841 |
| 49 | Back-Up Ring | 705923 | 705923 |
| UTV Packing | 610112-14 | ||
| Back-Up Ring | 610108-08 |
|
|
|
|
|
