American Oil Tools sales only the highest quality aftermarket OEM style valve parts for Cameron Hydraulic Gate Valves Type F & FC. All of our Cameron Hydraulic Gate Valves Type F & FC parts are "made in the USA". Our Cameron Hydraulic Gate Valves Type F & FC spares are competitively priced, offer exceptional quality and durability. Valve manufactures and models include:
Cameron Reset Relief Valve Type "B" • Cameron &
Oteco Mud Valve • Cameron Back Pressure Valve •
Cameron Check Valve Type MS & Type R • Cameron H2 Choke
• Cameron Hydraulic Drilling Choke • Cameron
Hydraulic Gate Valve Type FC • Cameron Manual Gate Valve
Type F & FC • Cameron Manual Gate Valve Type FL •
Cameron Subsea Gate Valve "AF" & "DF" • Demco Mud Valve
Type "DM" • Major OEM Choke Parts • McEvoy
Model "C" Gate Valve • Shaffer Gate Valve Type B •
Swaco Hydraulic Drilling Choke • WKM Gate Valve Model M
& M-1.
Please click on the links below under valves for additional information.
Cameron Reset Relief Valve Type "B"
Cameron & Oteco Mud Valve
Cameron Back Pressure Valve
Cameron Check Valve Type MS
Cameron Check Valve Type R
Cameron H2 Choke
Cameron Hydraulic Drilling Choke
Cameron Hydraulic Gate Valve Type F & Type FC
Cameron Hydraulic Gate Valve Type F & Type FC
Cameron Manual Gate Valve Type F & FC
Cameron Manual Gate Valve Type FL
McEvoy Model "C" Gate Valve
Shaffer Gate Valve Type B
Swaco Hydraulic Drilling Choke
WKM Gate Valve Model M & M-1

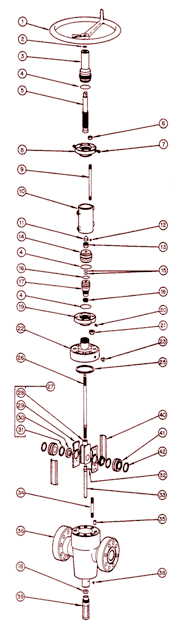

Cameron Hydraulic Gate Valves Type F & FC
|
|
Description |
2 1/16" 5,000 H2S Trim |
2 1/16" 10,000 H2S Trim |
2 1/16" 15,000 H2S Trim |
|
1. Hand Wheel |
19937-1 |
19937-3 |
19937-3 |
|
|
2. O-Ring |
6227-27-1-70 |
6227-27-1-70 |
6227-27-1-70 |
|
|
3. Adjusting Nut |
22936-1 |
22936-1 |
22936-1 |
|
|
4. O-Ring |
6227-48-1-70 |
6227-48-1-70 |
6227-48-1-70 |
|
|
5. Locking Screw |
18597-1 |
18597-1 |
18597-1 |
|
|
6. Cylinder Head Nut |
5926-08 |
5926-08 |
5926-08 |
|
|
7. Set Screw |
5940-6 |
5940-6 |
5940-6 |
|
|
8. Blind Cylinder Head |
22939-1 |
22939-1 |
22939-1 |
|
|
9. Cylinder Head Stud |
5911-48 |
5911-48 |
5911-48 |
|
|
10. Cylinder |
20459-4 |
20459-4 |
20459-4 |
|
|
11. Centering Pin |
18596-1 |
18596-1 |
18596-1 |
|
|
12. Set Screw |
5940-1-4 |
5940-1-4 |
59409-1-4 |
|
|
13. Piston Lock Nut |
5953-5 |
5953-5 |
5953-5 |
|
|
14. Piston |
20582-1 |
20582-1 |
20582-1 |
|
|
15. O-Ring |
6227-19-1-70 |
6227-19-1-70 |
6227-19-1-70 |
|
|
16. O-Ring |
6227-36-13-85 |
6227-36-13-85 |
6227-36-13-85 |
|
|
17. Gland |
20454-2 |
20454-2 |
20454-2 |
|
|
18. Stem Packing |
686598-01 |
686598-01 |
686598-01 |
|
|
19. Lower Cylinder Head |
20583-01 |
20583-01 |
20583-01 |
|
|
20. Relief Valve |
5929-10 |
5929-10 |
5929-10 |
|
|
21. Bonnet Nut |
5929-9 |
5929-25 |
12955-17 |
|
|
22. Bonnet |
33297-1-1 |
33297-4-1 |
33297-5-1 |
|
|
23. Grease Fitting |
5929-55 |
5929-55 |
5929-55 |
|
|
24. Valve Check |
|
678627-1 |
678627-1 |
|
|
25. Bonnet Gasket |
21793-11 |
19141-7 |
19141-7 |
|
|
26. Stem |
34272-1 |
34272-1 |
34272-1 |
|
|
27. Gate & Seat Assy. |
21436-2-4 |
21436-2-4 |
21436-2-4 |
|
|
28. Gate |
38696-1 |
29786-1 |
29786-1 |
|
|
29. Retainer Plate |
21356-1 |
21356-1 |
21356-1 |
|
|
30. Seat Ring |
18593-1 |
18593-2 |
18593-2 |
|
|
31. Seal Ring |
610500-23 |
610500-23 |
610500-23 |
|
|
32. Pin |
21812-52 |
21812-52 |
21812-52 |
|
|
33. Lower Stem |
34271-2 |
34271-2 |
34271-2 |
|
|
34. Bonnet Stud |
5912-67 |
5914-18 |
5915-67 |
|
|
35. Bonnet Locating Pin |
21813-6 |
|
|
|
|
36 Body |
20465-1 |
20465-28 |
20465-3 |
|
|
37. Name Plate |
19052 |
19052 |
19052 |
|
|
38 Pipe Plug |
5930-1 |
5930-1 |
5930-1 |
|
|
39 Stem Protector |
20460-2 |
20462-2 |
20462-2 |
|
|
40. Lubricant |
22284-2 |
22284-2 |
22284-2 |
Cameron Hydraulic Gate Valves Type F & FC
|
|
Description |
3 1/18" 5,000 |
3 1/16" 10,000 | 3 1/16" 15,000 |
4 1/16" 5,000 |
4 1/16" 10,000 |
| Trim | H2S Trim | H2S Trim | H2S Trim | H2S Trim | H2S Trim | |
|
1. Hand Wheel |
20774-02 | 20774-02 | 20774-2 | 19937-1 | 20774-02 | |
|
2. O-Ring |
6227-27-1-70 | 6227-27-1-70 | 6227-27-1-70 | 6227-27-1-70 | 6227-27-1-70 | |
|
3. Adjusting Nut |
22948-01 | 22948-01 | 689724-00 | 22938-1 | 22850-01 | |
|
4. O-Ring |
6227-51-13-90 | 6227-51-13-90 | 6227-61-01-70 | 6227-48-1-70 | 6227-61-01-70 | |
|
5. Locking Screw |
18597-03 | 18597-03 | 18597-00 | 18597-04 | 18597-04 | |
|
6. Cylinder Head Nut |
5926-08 | 5926-08 | 5926-10 | 5926-08 | 5926-10 | |
|
7. Set Screw |
5940-06 | 5940-06 | 5940-06 | 5940-06 | 5940-06 | |
|
8. Blind Cylinder Head |
22945-01 | 22945-01 | 690173-01 | 22939-1 | 22410-01 | |
|
9. Cylinder Head Stud |
5911-49 | 5911-49 | 5913-30 | 5911-47 | 5913-30 | |
|
10. Cylinder |
20459-14 | 20459-08 | 20459-31 | 20459-3 | 20459-07 | |
|
11. Centering Pin |
18596-01 | 18596-01 | 18598-01 | 18596-1 | 18598-01 | |
|
12. Set Screw |
5940-1-04 | 5940-1-04 | 5940-1-04 | 5940-1-04 | 5940-1-04 | |
|
13. Piston Lock Nut |
5953-05 | 5953-05 | 5939-06 | 5953-5 | 5953-06 | |
|
14. Piston |
20582-01 | 20946-01 | 20828-01 | 20582-1 | 20828-01 | |
|
15. O-Ring |
6227-19-1-70 | 6227-19-1-70 | 6227-23-01-70 | 6227-19-1-70 | 6227-23-01-70 | |
|
16. O-Ring |
6227-36-13-90 | 6227-36-13-90 | 6227-40-10-80 | 6227-36-13-85 | 6227-40-01-80 | |
|
17. Gland |
20943-02 | 20943-02 | 689722-02 | 20454-2 | 20827-02 | |
|
18. Stem Packing |
686598-01 | 686598-01 | 686598-02 | 686598-1 | 686598-02 | |
|
19. Lower Cylinder Head |
20938-01 | 20938-01 | 689721-00 | 20583-01 | 20553-01 | |
|
20. Relief Valve |
5929-10 | 5929-10 | 5929-10 | 5929-10 | 5929-10 | |
|
21. Bonnet Nut |
5926-25-10 | 12955-19 | 18573-06-10 | 5926-23 | 12955-35 | |
|
22. Bonnet |
33297-09-01 | 33297-10-01 | 677513-02-01 | 33297-14-1 | 33298-02-01 | |
|
23. Grease Fitting |
5929-55 | 5929-55 | 5929-55 | 5929-55 | 5929-55 | |
|
24. Valve Check |
678627-01-99 | 678627-01-99 | 678627-01-99 | |||
|
25. Bonnet Gasket |
21793-08 | 19141-10 | 44671-04 | 21794-3 | 19141-11 | |
|
26. Stem |
34272-02 | 34272-04 | 689720-02-99 | 34272-3 | 38638-01 | |
|
27. Gate & Seat Assy. |
21436-03-04 | 21436-03-04 | 21436-03-15 | 21436-4-7 | 21436-04-05 | |
|
28. Gate |
29399-01 | 29399-01 | 689719-05 | 679632-1 | 34273-01 | |
|
29. Retainer Plate |
21358-01 | 21358-01 | 611404-15 | 21020-1 | 21021-01 | |
|
30. Seat Ring |
22254-02 | 22254-02 | 678353-01 | 22126-2 | 22251-02 | |
|
31. Seal Ring |
610500-50 | 610500-50 | 610500-55 | 610500-47 | 610500-47 | |
|
32. Pin |
21812-52 | 21812-52 | 21812-52 | 21812-52 | 21810-80 | |
|
33. Lower Stem |
34271-3 | 34271-3 | 34271-3 | 28360-03 | ||
|
34. Bonnet Stud |
5914-21-10 | 5917-33-10 | 5914-95-10 | 5912-67 | 6306-22 | |
|
35. Bonnet Locating Pin |
21814-05 | 21814-5 | ||||
|
36 Body |
694480-01 | 20465-2 | 694405-01 | |||
|
37. Name Plate |
19052 | 19052 | 19052-01 | 19052 | 19052 | |
|
38 Pipe Plug |
5930-1 | 5930-1 | 5931-01 | 5930-1 | 5930-01 | |
|
39 Stem Protector |
20953-01 | 20953-01 | 689716-02 | 20461-1 | 20849-02 | |
|
40. Lubricant |
22284-2 | 22284-2 | 22284-25 | 22284-25 | 22284-25 |
|
|
|
|
|
