American Oil Tools sales only the highest quality aftermarket OEM style parts for the Cameron Ram Type "U" BOP 7-1/16”. All of our Cameron Ram Type "U" BOP 7-1/16” replacement parts are "made in the USA".  The Cameron Ram Type "U" BOP 7-1/16” spares are competitively priced, offer exceptional quality and durability. B.O.P. manufactures include; Cooper Cameron, Hydril and Shaffer LWS BOP.


 Blowout Preventers Replacement Parts List

Please click on the links below to view our "Blow out Preventers Replacement Parts List"

CAMERON TYPE U RAM BLOW OUT PREVENTER
Cameron Type "F" Cup Tester
Cameron Ram Type "U" BOP 7- 1/16”
Cameron Ram Type "U" BOP 11”
 Cameron Ram Type "U" BOP 16 3/4”
Hydril Annular Blowout Preventer Type GK
Hydril Annular Blowout Preventer Type MSP

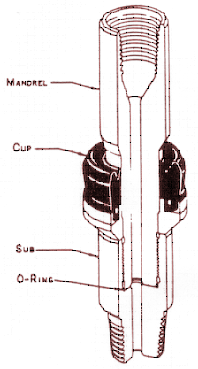

 Cameron Type "F" Cup Tester Replacement Parts


Top & Bottom Connection

Total load capacity

Casing

Cup Pressure
Area, Sq. in

Part Number

Size

Weight
Range lb/ft

Complete Assembly

Cup

Mandrel

Sub

O-ring
 2-3/8” Int Flush  270,000lb 4 ½” All 9.5 30594-01 30591  30589  30590  6227-25-01-80
 2-3/8” Int Flush  270,000lb 5” All 12.4 30594-02 30592  30589  30590  6227-25-01-80
 2-3/8” Int Flush  270,000lb 5 ½” All 16 30594-03 30593  30589  30590  6227-25-01-80
 3-1/2" Int Flush  500,000 lb 6 5/8” All 18.6 30605-01 30597  30595  30596   6227-37-01-80
3-1/2" Int Flush  500,000 lb 7” 17 - 26 23.5 30605-02 30598-02  30595  30596   6227-37-01-80
3-1/2" Int Flush  500,000 lb 7” 29 - 38 20.4 30605-03 30598-01  30595  30596   6227-37-01-80
3-1/2" Int Flush  500,000 lb 7 5/8” 24 - 26.4 28.8 30605-04 30599-01  30595  30596   6227-37-01-80
3-1/2" Int Flush  500,000 lb 7 5/8” 29.7 - 39 27.5 30605-05 30599-02  30595  30596   6227-37-01-80
 4-1/2" Int Flush  800,000 lb 8 5/8” 24 - 36 32.5 30600-03 30606-02  30603  30604  6227-47-01-80
 4-1/2" Int Flush  800,000 lb 8 5/8” 40 - 49 29.4 30600-04 30606-01  30603  30604  6227-47-01-80
 4-1/2" Int Flush  800,000 lb 9 5/8” 32.3 - 40 44.1 30600-01 30601-01  30603  30604  6227-47-01-80
 4-1/2" Int Flush  800,000 lb 9 5/8” 43.5  -53.5 42.4 30600-02 30601-02  30603  30604  6227-47-01-80
 4-1/2" Int Flush  800,000 lb 10 Ύ” 32.75 - 51 63.8 30600-05 30607-01  30603  30604  6227-47-01-80
 4-1/2" Int Flush  800,000 lb 10 Ύ” 55.5 - 65.7 58.9 30600-06 30607-02  30603  30604  6227-47-01-80
 4-1/2" Int Flush  800,000 lb 13 3/8” 48 - 61 109.5 30600-07 30579-02  30603  30604  6227-47-01-80
 4-1/2" Int Flush  800,000 lb 13 3/8” 68 - 72 103.3 30600-08 30579-01  30603  30604  6227-47-01-80
 4-1/2" Int Flush  800,000 lb 16” All 165 30600-09 30584  30603  30604  6227-47-01-80
 4-1/2" Int Flush  800,000 lb 18" All 230 30600-12 674819  30603  30604  6227-47-01-80
 4-1/2" Int Flush  800,000 lb 20” 78.6 - 129-3 300 30600-10 33543  30603  30604  6227-47-01-80

 Cameron Type "F" Cup Tester / Cups Summary

Part Number Description
30594-01 TYPE "F" CUP TESTER ASSEMBLY - WITH 2-3/8" Int Flush, CASING SIZE 4-1/2", WEIGHT RANGE (ALL), 10,000 PSI
30594-02 TYPE "F" CUP TESTER ASSEMBLY - WITH 2-3/8" Int Flush, CASING SIZE 5", WEIGHT RANGE (ALL), 10,000 PSI
30594-03 TYPE "F" CUP TESTER ASSEMBLY - WITH 2-3/8" Int Flush, CASING SIZE 5-1/2", WEIGHT RANGE (ALL), 10,000 PSI
30591 TYPE "F" TEST CUP – SIZE 4-1/2", WEIGHT RANGE (ALL),10,000 PSI
30592 TYPE "F" TEST CUP – SIZE 5", WEIGHT RANGE (ALL),10,000 PSI
30593 TYPE "F" TEST CUP – SIZE 5-1/2", WEIGHT RANGE (ALL),10,000 PSI
30605-01 TYPE "F" CUP TESTER ASSEMBLY - WITH 3-1/2" Int Flush, CASING SIZE 6-5/8", WEIGHT RANGE (ALL), 10,000 PSI
30605-02 TYPE "F" CUP TESTER ASSEMBLY - WITH 3-1/2" Int Flush, CASING SIZE 7", WEIGHT RANGE (17-26 lb/ft), 10,000 PSI
30605-03 TYPE "F" CUP TESTER ASSEMBLY - WITH 3-1/2" Int Flush, CASING SIZE 7", WEIGHT RANGE (29-38 lb/ft), 10,000 PSI
30605-04 TYPE "F" CUP TESTER ASSEMBLY - WITH 3-1/2" Int Flush, CASING SIZE 7-5/8", WEIGHT RANGE (24-26.4 lb/ft), 10,000 PSI
30605-05 TYPE "F" CUP TESTER ASSEMBLY - WITH 3-1/2" Int Flush, CASING SIZE 7-5/8", WEIGHT RANGE (29.7-39 lb/ft), 10,000 PSI
30597 TYPE "F" TEST CUP – SIZE 6-5/8", WEIGHT RANGE (ALL),10,000 PSI
30598-02 TYPE "F" TEST CUP – SIZE 7", WEIGHT RANGE (17-26 lb/ft),10,000 PSI
30598-01 TYPE "F" TEST CUP – SIZE 7", WEIGHT RANGE (29-38 lb/ft),10,000 PSI
30599-01 TYPE "F" TEST CUP – SIZE 7-5/8", WEIGHT RANGE (24-26.4 lb/ft),10,000 PSI
30599-02 TYPE "F" TEST CUP – SIZE 7-5/8", WEIGHT RANGE (29.7-39 lb/ft),10,000 PSI
30600-03 TYPE "F" CUP TESTER ASSEMBLY - WITH 4-1/2" Int Flush, CASING SIZE 8-5/8", WEIGHT RANGE (24 - 36 lb/ft), 10,000 PSI
30600-04 TYPE "F" CUP TESTER ASSEMBLY - WITH 4-1/2" Int Flush, CASING SIZE 8-5/8", WEIGHT RANGE (40 - 49 lb/ft), 10,000 PSI
30600-01 TYPE "F" CUP TESTER ASSEMBLY - WITH 4-1/2" Int Flush, CASING SIZE 9-5/8", WEIGHT RANGE (32.3 - 40 lb/ft), 10,000 PSI
30600-02 TYPE "F" CUP TESTER ASSEMBLY - WITH 4-1/2" Int Flush, CASING SIZE 9-5/8", WEIGHT RANGE (43.5 - 53.5 lb/ft), 10,000 PSI
30600-05 TYPE "F" CUP TESTER ASSEMBLY - WITH 4-1/2" Int Flush, CASING SIZE 10-3/4", WEIGHT RANGE (32.75 - 51 lb/ft), 10,000 PSI
30600-06 TYPE "F" CUP TESTER ASSEMBLY - WITH 4-1/2" Int Flush, CASING SIZE 10-3/4", WEIGHT RANGE (55.5 - 65.7 lb/ft), 10,000 PSI
30600-07 TYPE "F" CUP TESTER ASSEMBLY - WITH 4-1/2" Int Flush, CASING SIZE 13-3/8", WEIGHT RANGE (48 - 61 lb/ft), 10,000 PSI
30600-08 TYPE "F" CUP TESTER ASSEMBLY - WITH 4-1/2" Int Flush, CASING SIZE 13-3/8", WEIGHT RANGE (68 - 72 lb/ft), 10,000 PSI
30600-09 TYPE "F" CUP TESTER ASSEMBLY - WITH 4-1/2" Int Flush, CASING SIZE 16", WEIGHT RANGE (ALL), 10,000 PSI
30600-12 TYPE "F" CUP TESTER ASSEMBLY - WITH 4-1/2" Int Flush, CASING SIZE 18-5/8", WEIGHT RANGE (AL), 10,000 PSI
30600-10 TYPE "F" CUP TESTER ASSEMBLY - WITH 4-1/2" Int Flush, CASING SIZE 20", WEIGHT RANGE (78.6 -129.3 lb/ft), 10,000 PSI
30606-02 TYPE "F" TEST CUP – SIZE 8-5/8", WEIGHT RANGE (24 - 36 lb/ft),10,000 PSI
30606-01 TYPE "F" TEST CUP – SIZE 8-5/8", WEIGHT RANGE (40 - 49 lb/ft),10,000 PSI
30601-01 TYPE "F" TEST CUP – SIZE 9-5/8", WEIGHT RANGE (32.3 - 40 lb/ft),10,000 PSI
30601-02 TYPE "F" TEST CUP – SIZE 9-5/8", WEIGHT RANGE (43.5 - 53.5 lb/ft),10,000 PSI
30607-01 TYPE "F" TEST CUP – SIZE 10-3/4", WEIGHT RANGE (32.75 - 51 lb/ft),10,000 PSI
30607-02 TYPE "F" TEST CUP – SIZE 10-3/4", WEIGHT RANGE (55.5- 65.7 lb/ft),10,000 PSI
30579-02 TYPE "F" TEST CUP – SIZE 13-3/8", WEIGHT RANGE (48 - 61 lb/ft),10,000 PSI
30579-01 TYPE "F" TEST CUP – SIZE 13-3/8", WEIGHT RANGE (68 - 72 lb/ft),10,000 PSI
30584 TYPE "F" TEST CUP – SIZE 16", WEIGHT RANGE (ALL),10,000 PSI
674819 TYPE "F" TEST CUP – SIZE 18-5/8", WEIGHT RANGE (ALL),10,000 PSI
33543 TYPE "F" TEST CUP – SIZE 20", WEIGHT RANGE 78.6 - 129.3 lb/ft),10,000 PSI
