Replacement Parts for Shaffer Model "B"

American Oil Tools sales only the highest quality aftermarket OEM style valve parts for Shaffer Model "B". All of our replacement parts for Shaffer Model "B" are "made in the USA". Our Shaffer Model "B" parts are competitively priced, offer exceptional quality and durability. Valve manufactures and models include:

Cameron Reset Relief Valve Type "B" • Cameron & Oteco Mud Valve • Cameron Back Pressure Valve • Cameron Check Valve Type MS & Type R • Cameron H2 Choke • Cameron Hydraulic Drilling Choke • Cameron Hydraulic Gate Valve Type FC • Cameron Manual Gate Valve Type F & FC • Cameron Manual Gate Valve Type FL • Cameron Subsea Gate Valve "AF" & "DF" • Demco Mud Valve Type "DM" • Major OEM Choke Parts • McEvoy Model "C" Gate Valve • Shaffer Gate Valve Type B • Swaco Hydraulic Drilling Choke • WKM Gate Valve Model M & M-1.

Please click on the links below under valves for additional information.

Valves

Cameron Reset Relief Valve Type "B"
Cameron & Oteco Mud Valve
Cameron Back Pressure Valve
Cameron Check Valve Type MS
Cameron Check Valve Type R
Cameron H2 Choke
Cameron Hydraulic Drilling Choke
Cameron Hydraulic Gate Valve Type F & Type FC

Cameron Hydraulic Gate Valve Type F & Type FC
Cameron Manual Gate Valve Type F & FC
Cameron Manual Gate Valve Type FL
McEvoy Model "C" Gate Valve
Shaffer Gate Valve Type B
Swaco Hydraulic Drilling Choke
WKM Gate Valve Model M & M-1

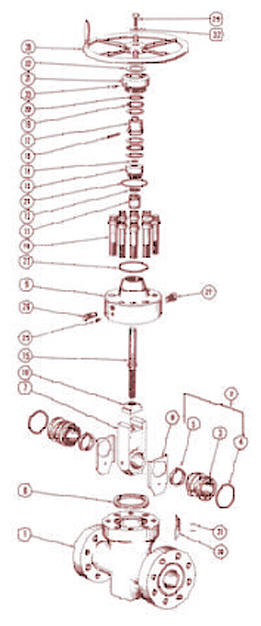

Replacement Parts for Shaffer Model "B"

	Description		Qty	Size
	Description		Qty	4 1/16" 10,000	3 1/19" 10,000	2 1/16" 10,000	4 1/16" 5,000	3 1/8" 5,000	2 1/16" 5,000
1.	Body		1
2.	Seat Assy.		2	719357	718292	718297	719355	719448	719336
3.	Seat		2	719353	718291	718298	719354	719449	717365
4.	O-ring		2	030928	030611	030601	030847	030608	030599
5.	Elastomeric II face seal		2	718187	718186	718185	718187	718186	718185
6.	Grease plate		2	717174	717128	718444	718445	717909	718443
7*	Gate		1	717138	717139	717135	717137	717905	717886
8.	Bonnet gasket		1	050388	050387	050383	050388	050385	050382
9.	Bonnet		1	717118	717091	717122	717092	717123	717885
10.	Bonnet bolts		8	060435	060435	060433	060434	060433	060430
11.	Packing Assy.		1	717075	717075	717078	717075	717078	717078
12.	Modular bearing		1	062229	062229	062228	062229	062228	062228
13.	Packing gland		1	707055	717055	717083	717055	717083	717083
14.	Gland O-ring		1	030591	030591	030587	030591	030587	030587
15*	Stem		1	717060	717125	717140	717155	717141	717890
16.	Gate bushing		1	717378	717378	717383	717378	717383	717893
17.	Stem adapter		1	717059	717059	717079	717059	717079	717079
18.	Dowel pin		1	060921	060921	050071	060921	050071	050071
19.	Bering		2	060810	060810	060808	060810	060808	060808
20.	Bearing race		4	060811	060811	060809	060811	060809	060809
21.	Bearing housing		1	717058	717058	717082	717058	717082	717082
22.	Grease seal		1	060603	060603	060603	060603	060603	060603
23.	O-ring		1	030190	030190	030609	030190	030614	030609
24.	O-ring		1	030624	030624	030609	030624	030609	030609
25.	Back set test screw		1	717379	717379	717379	717379	717379	717379
26.	Plastic Inj. screw		1	717031	717031	717031	717031	717031	717031
27.	Grease fitting		1	060876	060876	060876	060876	060876	060876
28.	Hand wheel		1	717736	717735	717735	717735	717734	717733
29.	Hand wheel bolt		1	010249	010249	010249	010249	010249	010249
30.	Name plate		1	060902	060902	060902	060902	060902	060902
31.	Drive screw		4	010568	010568	010568	010568	010568	010568
32.	Hand wheel washer		1	717115	717115	717115	717115	717115	717115
33.	Alemite fitting		1	060882	060882	060882	060882	060882	060882
34.	Pipe plug		1	066326	066326	066326	066326	066326	066326
H2S Service Use Part Number below. All other parts are the same
7.		Gate	1	717466	717465	717463	717377	717906		717887
15		Stem	1	717496	717376	717494	717376	717382		717891
