We sale only the highest quality aftermarket OEM style valve parts for Cameron Reset Relief Valve Type "B". All of our Cameron Reset Relief Valve Type "B" parts are "made in the USA". Our Cameron Reset Relief Valve Type "B" spares are competitively priced, offer exceptional quality and durability. Valve manufactures and models include:


Valve PartsCameron Reset Relief Valve Type "B" •  Cameron & Oteco Mud Valve  •  Cameron Back Pressure Valve  •  Cameron Check Valve Type MS & Type R  •  Cameron H2 Choke  •  Cameron Hydraulic Drilling Choke  •  Cameron Hydraulic Gate Valve Type FC  •  Cameron Manual Gate Valve Type F & FC  •  Cameron Manual Gate Valve Type FL  •  Cameron Subsea Gate Valve "AF" & "DF"  •  Demco Mud Valve Type "DM"  •  Major OEM Choke Parts  •  McEvoy Model "C" Gate Valve  •  Shaffer Gate Valve Type B  •  Swaco Hydraulic Drilling Choke  •  WKM Gate Valve Model M & M-1.

Please click on the links below under valves for additional information.


Valves

Cameron Reset Relief Valve Type "B"
Cameron & Oteco Mud Valve
Cameron Back Pressure Valve
Cameron Check Valve Type MS
Cameron Check Valve Type R

Cameron H2 Choke
Cameron Hydraulic Drilling Choke
Cameron Hydraulic Gate Valve Type F & Type FC


Cameron Hydraulic Gate Valve Type F & Type FC
Cameron Manual Gate Valve Type F & FC
Cameron Manual Gate Valve Type FL

McEvoy Model "C" Gate Valve
Shaffer Gate Valve Type B
Swaco Hydraulic Drilling Choke
WKM Gate Valve Model M & M-1

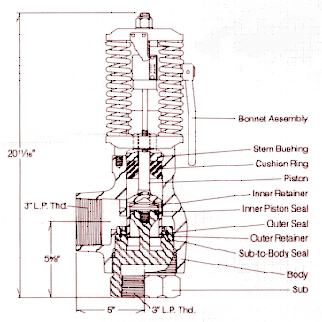

Cameron Reset Relief Valve Type "B"


Item Number Description    Part Number
1 Nut Elastic Stop 5953-34
2 Stud Adjusting 20798
3 Pin, Spiral 20712-04
4 Retainer, Upper Spring 30385
5 Indicator 30379
6 Screw, Self Tap 2975-03
7 Screw, Socket Head Cat 04044-10-00-14
8 Plate, Name 30170
9 Assembly, Cover 38159
10 Screw, Load 30389
11 Plate, Calibration 21048
12 O-Ring 6227-15-01-70
13 Handle, Reset 30377
14 Pin, Spiral 20712-13
15 Pin, Crank Pivot 30381
16 Spring, Reset 20791
17 Bearing 13229-10
18 Crank Assy. 38161
19 Pin, Spiral 20712-03
20 Pin, Top Crank 20802
21 Button, Release 30396
22 Spring, Bottom Release 30390
23 Shaft, Release 30397
24 Bushing, Release Button 30368
25 Roller, Reset Crank 30388
26 Pin, Spiral 20712-02
27 Crank, Reset 30373
28 Rod, Spring Guide 30387
29 Keeper Spring 30380
30 Spring, Reset Crank 30391
31 Spring Load 20805-01
32 Retainer, Lower Spring 30382
33 Fitting, Grease 5929-02
34 Sub, Assy. Bonnet 38160
35 Plate Instruction 30178
36 Bushing, Stem 30828
37 Body 30822
38 Link, Upper 20787
39 Link, Lower 20786
40 Pin, Lower 23545
41 Ring, Cushing 30834
42 Piston 30829
43 Retainer, Inner 30826
44 Seal, Piston Inner 30831
45 Retainer Outer 30827
46 O-Ring 6230-21-13-85
47 Seal Outer 30833
48 Sub 30824
