Cameron Ram Type "U" BOP 7-1/16”

American Oil Tools sales only the highest quality aftermarket OEM style parts for the Cameron Ram Type "U" BOP 7-1/16”. All of our Cameron Ram Type "U" BOP 7-1/16” replacement parts are "made in the USA". The Cameron Ram Type "U" BOP 7-1/16” spares are competitively priced, offer exceptional quality and durability. B.O.P. manufactures include; Cooper Cameron, Hydril and Shaffer LWS BOP.

Blowout Preventers Replacement Parts List

Please click on the links below to view our "Blow out Preventers Replacement Parts List"

Cameron Type "F" Cup Tester
Cameron Ram Type "U" BOP 7- 1/16”
Cameron Ram Type "U" BOP 11”
Cameron Ram Type "U" BOP 16 3/4”
Hydril Annular Blowout Preventer Type GK
Hydril Annular Blowout Preventer Type MSP

Cameron Ram Type "U" BOP 7-1/16” Replacement Parts

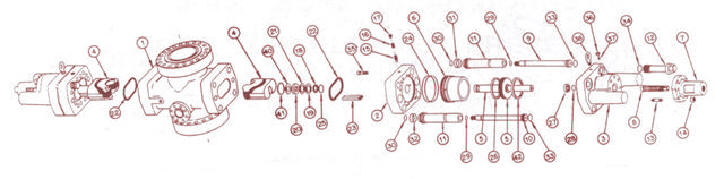

Cameron BOP RAM Type "U" Replacement Parts / Spare Parts List


7- 1/16” 3,000 – 11” 10,000 PSI WP “U” BOP Part Number
Item	Description	7 1/16” 5,000 psi Model II	7 1/16” 5,000 psi Model II	7 1/16” 10,000 psi Model II	7 1/16” 15,000 psi Model II	11” 3,000 psi Model II	11” 5,000 psi Model II	11” 10,000 psi Model II
1	Body
2	Intermediate Flange	30266-03	30266-03	30266-01	30266-01	30267-03	30267-03	30267-03
2a	Intermediate Flange shear	41499-03	41499-03	41499-01	41499-01	41457-03	41457-03	41457-03
3	Bonnet	30278-04	30278-03	30278-02	30278-01	30268-01	30268-02	30268-03
4	Ran Assembly	644216-X	644216- X	644216-x	644216-x	644219-x	644219-x	644219-x
5	Piston, Operating	667940	667940	667940	667940	673178	673178	673178
5a	Piston, Operating Shear	49116-01	49116-01	49116-01	49116-01	698914	698914	698914
6	Cylinder, Operating	30274-02	30274-02	30274-02	30274-02	30274-03	30274-03	30274-03
6a	Cylinder, Operating Shear	41365-02	41365-02	41365-02	41365-02	41365-03	41365-03	41365-03
7	Housing, Locking Screw	30308-01	30308-01	30308-01	30308-01	30308-02	30308-02	30308-02
8	Locking Screw	30326	30326	30326	30326	30365	30365	30365
8a	Locking Screw /Shear	49258-01	49258-01	49258-01	49258-01	46628-01	46628-01	46628-01
9	Piston, Ram Change/Open	30324	30324	30324	30324	30362	30362	30362
10	Piston Ram Change/Close	30325	30325	30325	30325	30363	30363	30363
11	Cylinder, Ram Change	30273-02	30273-02	30273-02	30273-02	30273-03	30273-03	30273-03
12	Bolt, Bonnet	30312-06	30312-02	30312-07	30312-01	30312-04	30312-03	30312-05
12a	Bolt, Bonnet / Shear	41366-06	41366-02	41366-07	41366-01	41366-04	41366-03	41366-05
13	Stud, Locking Screw Housing	38732-57-00-54	38732-57-00-54	38732-57-00-54	38732-57-00-54	38732-59-00-65	38732-59-00-65	38732-59-00-65
13a	Stud, Locking Screw Housing/Shear	12955-11-10	12955-11-10	12955-11-10	12955-11-10	12955-17-10	12955-17-10	12955-17-10
14	Nut, Locking Screw Housing	12955-11-10	12955-11-10	12955-11-10	12955-11-10	12955-17-10	12955-17-10	12955-17-10
15	Check Valve, Plastic Packing	680645-01	680645-01	680645-01	680645-01	680645-01	680645-01	680645-01
16	Screw Plastic Packing	5940-09	5940-09	5940-09	5940-09	5940-09	5940-09	5940-09
17	Pipe Plug Plastic packing	5930-05	5930-05	5930-05	5930-05	5930-05	5930-05	5930-05
18	Ring Plastic Packing	12469-36	12469-36	12469-36	12469-36	12469-38	12469-38	12469-38
19	Ring Plastic Energizing	18586-12	18586-12	18586-12	18586-12	18586-13	18586-13	18586-13
20	Seal ring Connecting Rod	11741-37	11741-37	21792-21	11741-37	11741-38	11741-38	11741-38
21	Ring Back-Up			21792-21	21792-21	21792-22	21792-22	21792-22
22	Seal Bonnet	46613-01	46613-01	46613-01	46613-01	46613-02	46613-02	46613-02
23	Pin Ram Guide	30313-02	30313-02	30313-02	30313-02	30313-03	30313-03	30313-03
24	O ring Operating Cylinder	6227-73-13-85	6227-73-13-85	6227-73-13-85	6227-73-13-85	6227-78-13-85	6227-78-13-85	6227-78-13-85
25	O ring Oper piston rod to int Flg	18492-92	18492-92	18492-92	18492-92	18492-91	18492-91	18492-91
26	Lip seal operating Piston	704774	704774	704774	704774	704773	704773	704772
27	Seal ring Tail Road	11741-32	11741-32	11741-32	11741-32	11741-33	11741-33	11741-33
28	O ring Wiping	6227-34-01-70	6227-34-01-70	6227-34-01-70	6227-34-01-70	6227-38-01-70	6227-38-01-70	6227-38-01-70
29	O ring ram change piston to Bonnet	18491-73	18491-73	18491-73	18491-73	6227-29-13-85	6227-29-13-85	6227-29-13-85
30	O ring ram change piston rod to int f	6227-32-13-85	6227-32-13-85	6227-32-13-85	6227-32-13-85	6227-34-13-85	6227-34-13-85	6227-34-13-85
31	O ring ram change Cyl to Int Flg	6227-41-13-85	6227-41-13-85	6227-41-13-85	6227-41-13-85	31423-25-13-85	31423-25-13-85	31423-25-13-85
32	O ring Ram change Cyl to bonnet	6227-45-13-85	6227-45-13-85	6227-45-13-85	6227-45-13-85	31423-26-13-85	31423-26-13-85	31423-26-13-85
33	O ring ram change piston	6227-35-13-85	6227-35-13-85	6227-35-13-85	6227-35-13-85	6227-38-13-85	6227-38-13-85	6227-38-13-85
34	O ring bonnet bolt retainer	6230-01-13-85	6230-03-13-85	6230-07-13-85	6230-10-01-90	6230-05-13-85	6230-07-13-85	6230-12-13-85
35	Cap Screw int Flg to Bonnet	702585-22-00-50	702585-22-00-50	702585-22-00-50	702585-22-00-50	702585-25-00-50	702585-25-00-50	702585-25-00-50
36	Gland Bleeder	17454-08	17454-08	17454-08	17454-08	17454-08	17454-08	17454-08
37	Plug Bleeder	17454-09	17454-09	17454-09	17454-09	17454-09	17454-09	17454-09
38	Lifting Eye	11849	11849	11849	11849	11849	11849	11849
39	Packing plastic	7650-08	7650-08	7650-08	7650-08	7650-08	7650-08	7650-08
40	Washer	2353-26	2353-26	2353-26	2353-26	2353-27	2353-27	2353-27
41	Ring retainer	18572-83	18572-83	18572-83	18752-83	18572-84	18572-84	18572-84
42	Wear Ring Operating Piston	49223-03	49223-03	49223-03	49223-03	49223-02	49223-02	49223-02
43	Space Shear	687117-01	687117-01	687117-01	687117-01	687117-02	687117-02	687117-02
